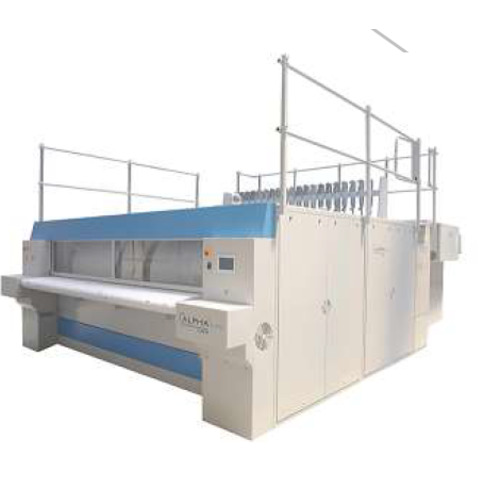

Planchador, calefacción a gas, 2 x 800 x 3000

Características

• The Jenroll Alpha is a self-contained gas-heated ironer incorporating a flexible chest for high capacity and top quality finishing on limited floor space. The flexible chest is designed for thermal oil as heating medium, allowing a temperature of up to 230ºC / 446ºF, which in combination with the flexible chest gives a high evaporation capacity.
• The self-contained concept allows you to run your flatwork department independently from a steam boiler. This is a big advantage in case you want to expand your production without extra steam capacity available, or in case you want to run extra hours in the flatwork department, as you can shut down the steam boiler. Furthermore the gas burner allows you to adjust temperature in each category, allowing you to iron 100% cotton sheets at high temperature, and polyester material at low temperature.
• Stand-alone unit with integrated gas-fired burner and heat exchanger
• Not depending on steam supply
• Uses oil as heating medium (Note! Oil is not included)
• Flexible chest giving increased capacity and reduced energy consumption
• Fast heat up in the morning
• Fully adjustable ironing temperature
• Higher and lower ironing temperature possible compared to steam ironers
• No energy consumption when not in use
• Very low energy consumption per kg water evaporated
• Very limited service requirements
• Flexible chest of two top-grade carbon steel plates laser welded together
• Chest inner plate of top-grade carbon steel giving low friction with wet linen
• Minimum heat escape by well insulated machine, chest and pipes and heat exchanger
• Small diameter gap piece between rolls to minimize heat escape
• Low energy consumption of only 1.1 KW per kg water evaporated
• Parallel flow ensuring maximum temperature in each chest
• Built-in safety spring to protect the chest against deformation in case a big lump enters
• Special roller lever system with vertical raising ensuring a stable ironing pressure
• 2 raised positions: 200 mm / 7.9” out of chest for pause or 400 mm / 15.7” for service
• 2-step roller pressure working according to category. Adjustable between 0 3 bar.
• AC motor drive controlled by frequency inverter giving variable speed in 99 recipes
• Standard speed range 26' to 111,5' / 8 to 34 meter/minute
• Optional speed range: See description of options
• Built-in planetary gear on each roll
• Remote control for start and stop of the drive when changing ironer tapes
• Prepared for air and power supply to feeder and folder by easy accessible connections
• Prepared for direct feeding into ironers chest
• Optional inlet table with or without vacuum support available
• Canopy with hand rails according to safety regulation
• Jentrol HMI PLC control system and operating panel with touch-screen, prepared for the unique production information management system “Globe”.
• Oil installation according to DIN 4754
• Chest certificate according to 97/23/EC or ASME – Other chest certificates is optional
• Chest steel plate according to EN 10 051 and EN 10 130
• Flanges according to DIN 2635
• Pipework is St. 35.8 to DIN 17 175
• Electrical specifications according to 73/23/EC
• Mechanical specifications according to 98/37/EC
• Boiler according to 97/23/EC
• Burner certificate according to CE or UL
• ASME certification
